AMOLED (Active Matrix/Organic Light Emitting Diode) is an active matrix organic light-emitting diode panel. It is a display technology that combines the technical characteristics of OLED (organic light-emitting diode) and AM (active matrix). The working principle of AMOLED is based on each pixel being composed of a tiny light source, liquid crystal, and color filter. When current passes through, these organic materials will emit light, thereby displaying images.

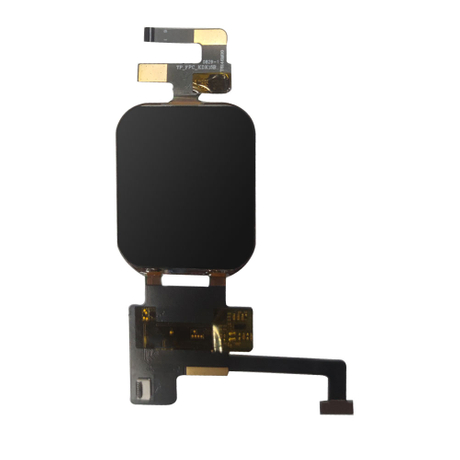

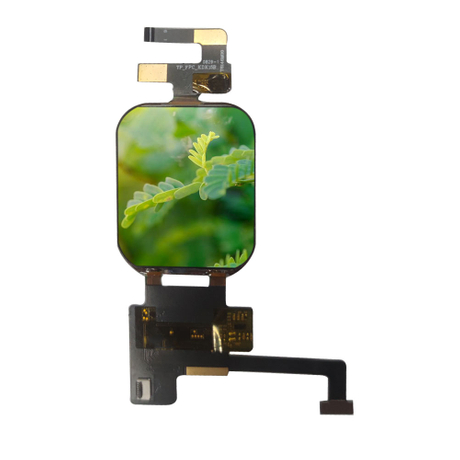

Description | 1.99 inch AMOLED display |
Outline size | 35.63*42.98*3.18 |
Active area | 32.41*39.01 |
Resolution | 410*494 |
Controller | SH8603 |
Interface | QSPI |
Driving Voltage | 3.3V |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
