HZ0348VGPBA01-A0
172*640
24.89*89.1*2.0
22.58*84.0
22.58*84.0
AXS15231
Product Description
The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.
Product Overview

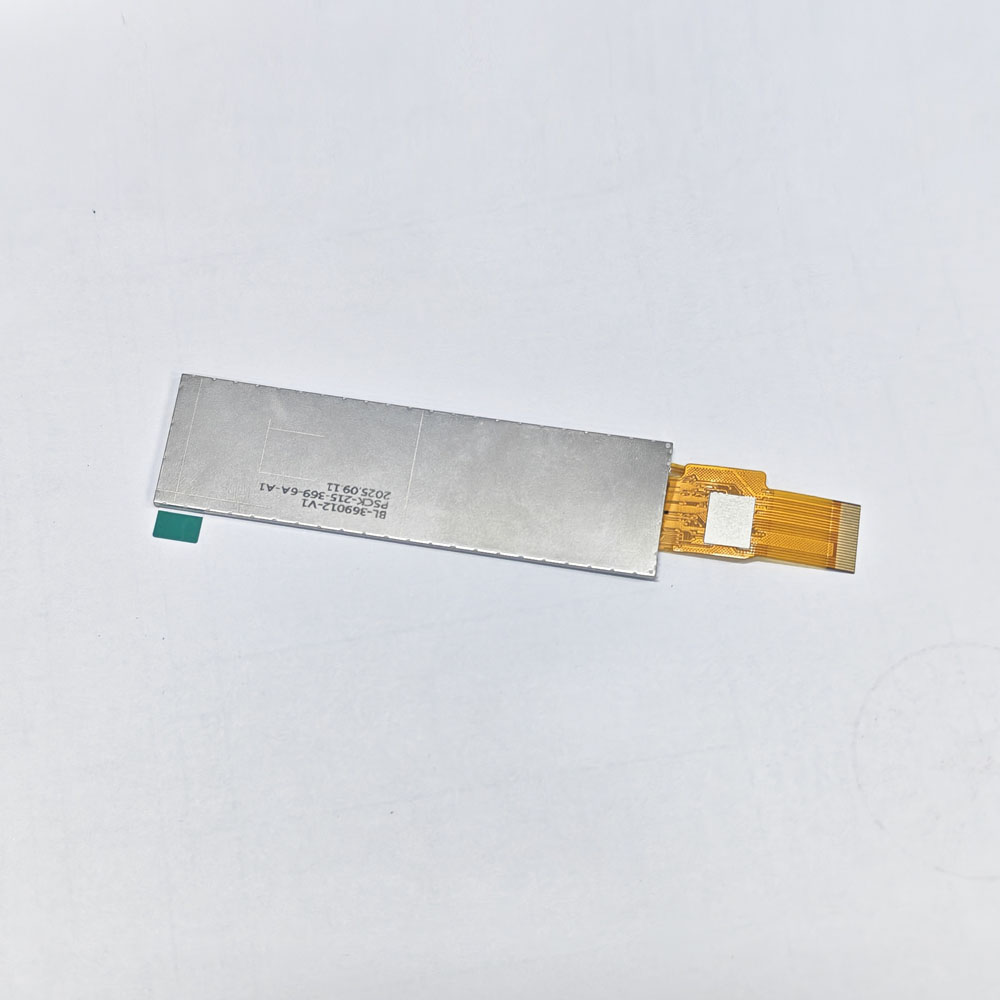

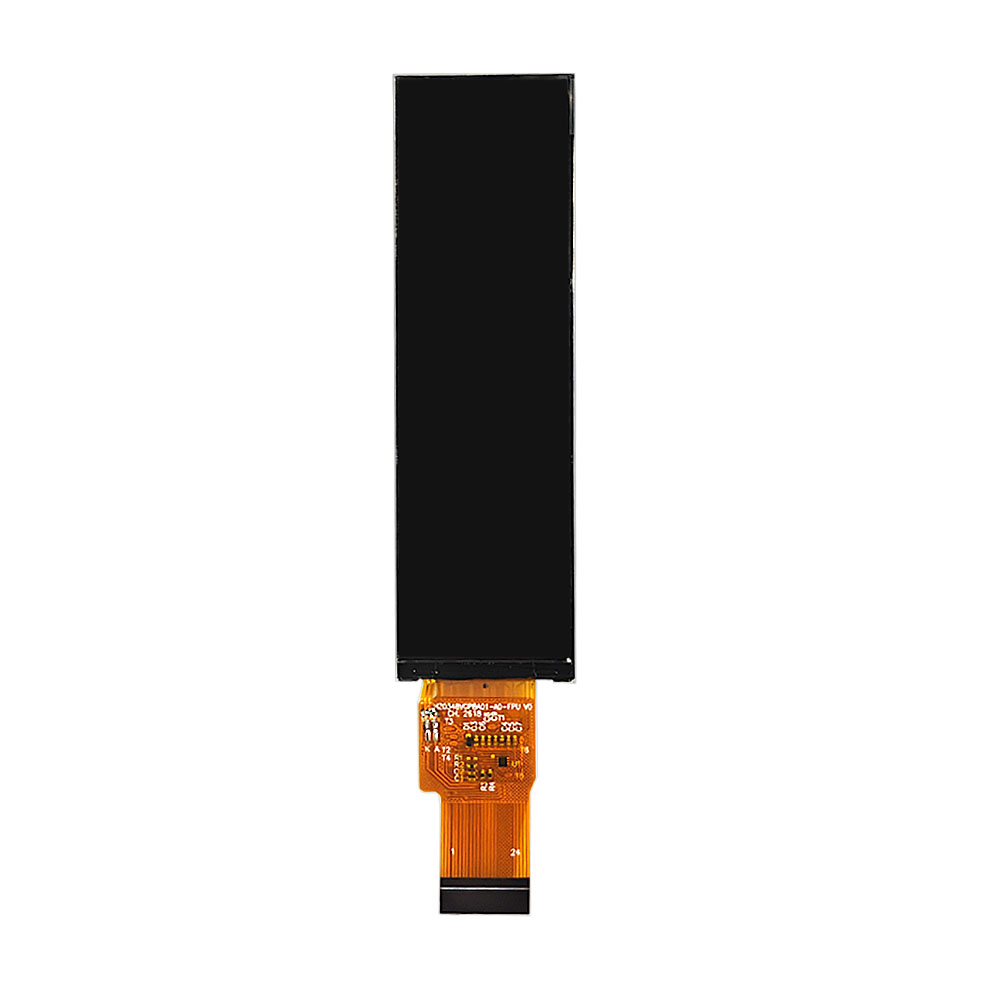

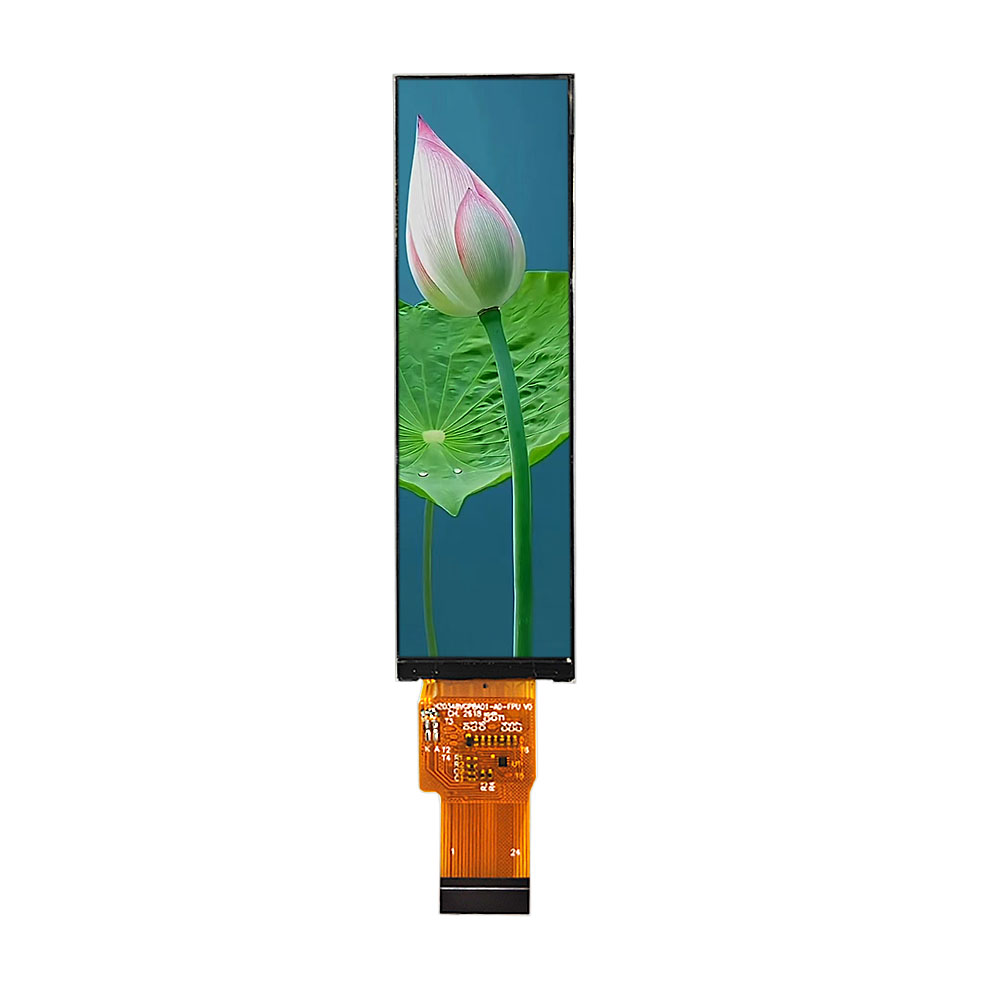

Description | 3.48 inch TFT LCD display |
Outline size | 24.89*89.1*2.0mm |
Active area | 22.58*84.0mm |
Resolution | 172*640 |
Driving IC | AXS15231 |
Interface | QSPI |
Driving Voltage | 3.3V |
| Viewing direction | All |
Backlight | LED*6,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
Features
Compact 3.48 inch color TFT module with vivid display performance.
Wide operating temperature range suitable for industrial control and instruments.
Low power consumption and high contrast ratio.
SPI serial interface for easy integration with MCU.
Optional resistive or capacitive touch screen available.
Custom interface and FPC cable length supported.
Applications
Handheld testers and smart tools
Wearable and IoT devices
Medical monitoring instruments
Industrial control panels
Communication terminals
