HZ0370FWFBS01-A0
480*854
49.56*89.37*2.03
46.08*81.98
46.08*81.98
ST7701
Product Description
The full name of TFT is Thin Film Transistor. Each pixel on a TFT display screen is driven by a thin film transistor, and a TFT display screen is an active matrix liquid crystal display device. A semi reflective and semi transmissive TFT screen can display images using the light source provided by the built-in backlight, or by utilizing external light without the need for backlight.

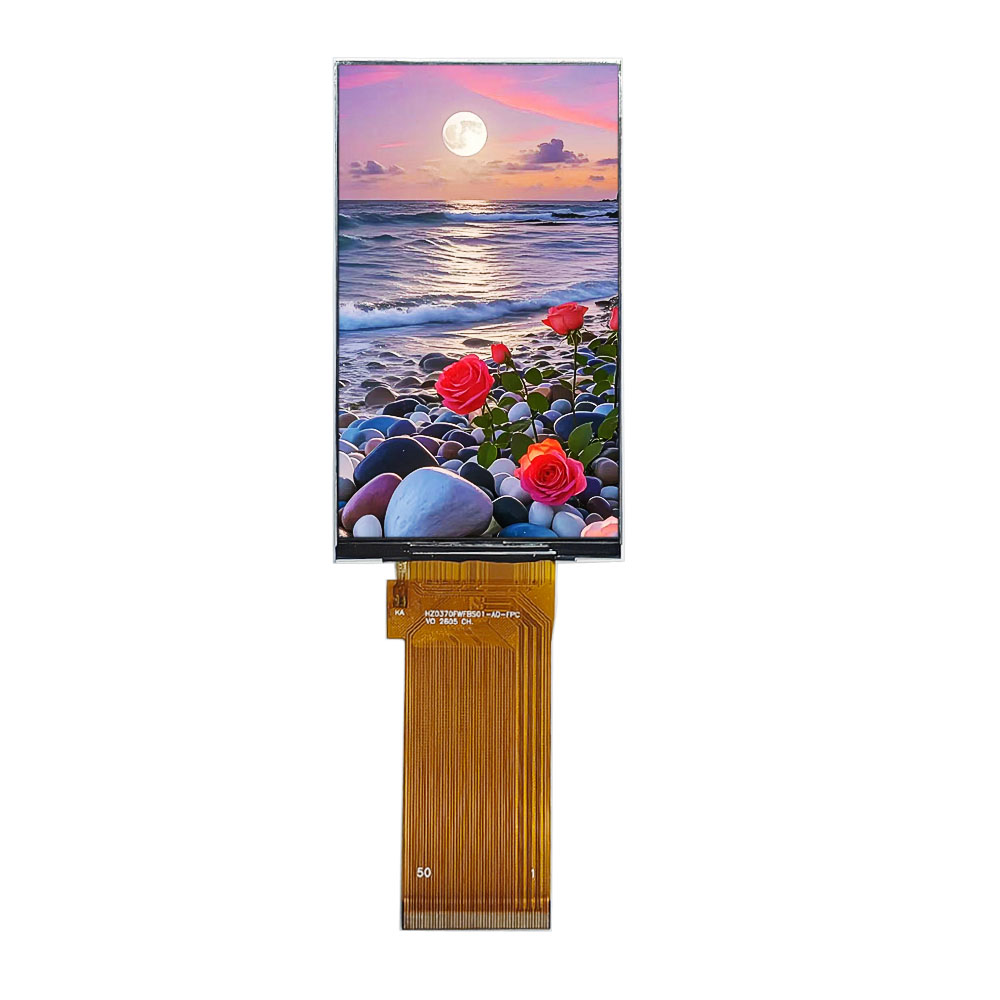

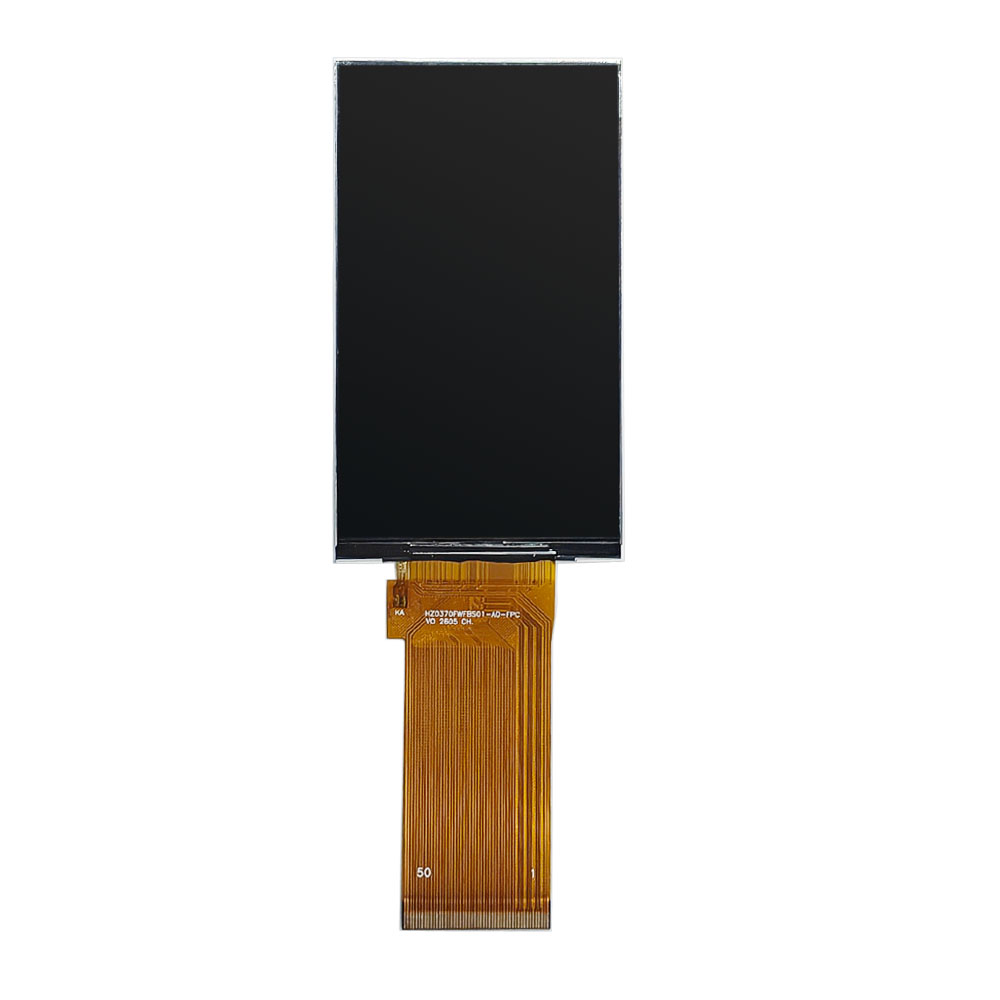

Description | 3.7 inch TFT LCD display |
Outline size | 49.56*89.37*2.03mm |
Active area | 46.08*81.98mm |
Resolution | 480*854 |
Controller | ST7701 |
Interface | RGB |
Driving Voltage | 2.8V |
backlight | LED*8,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
