HZ0180HVPBSWC
360*360
47.99*49.86*1.96
45.684*45.684
45.684*45.684
ST77916
The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.

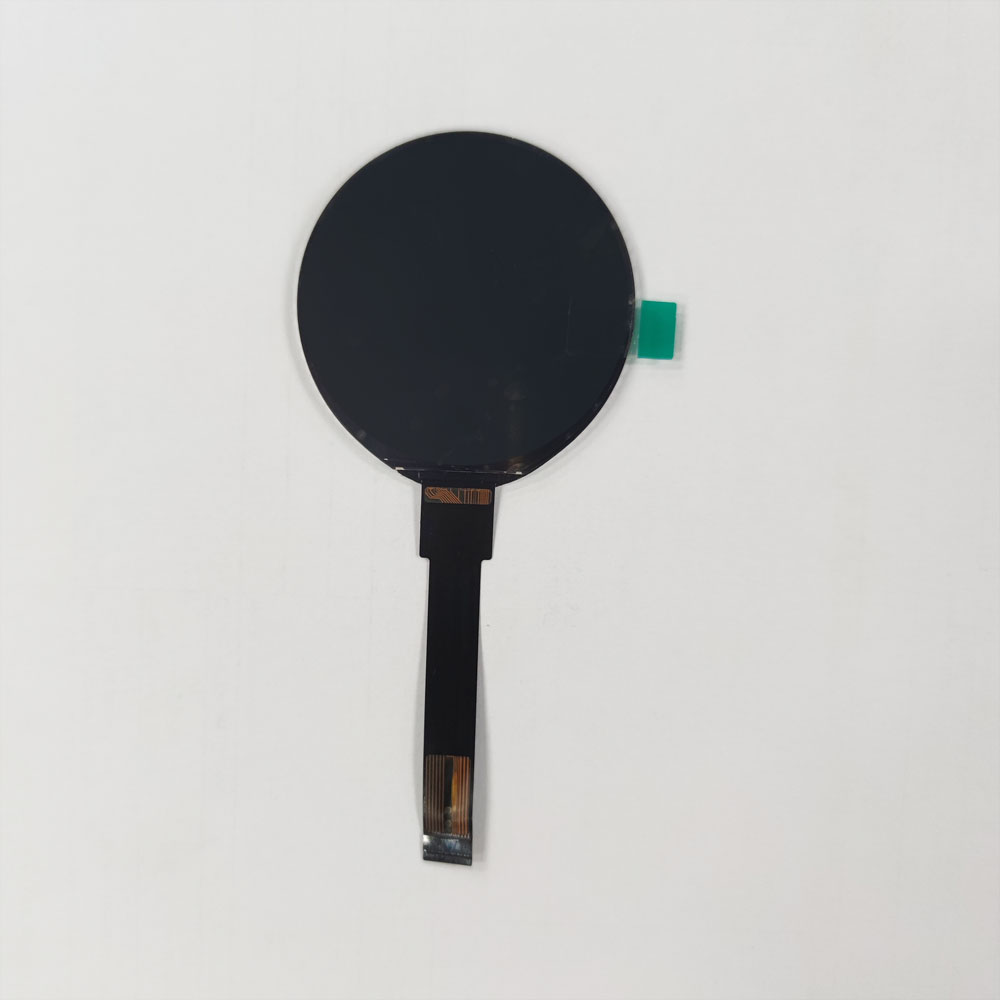

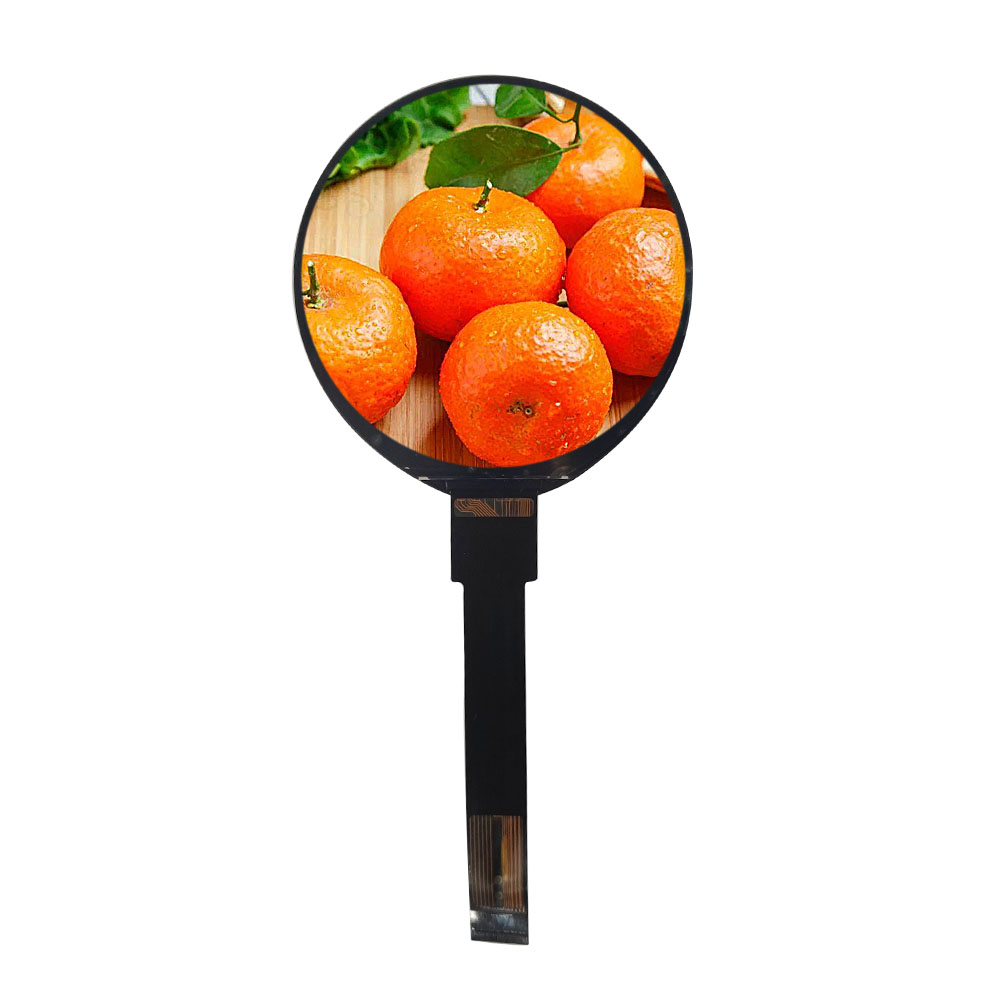

Description | 1.8 inch TFT LCD display |
Outline size | 47.99*49.86*1.96mm |
Active area | 45.864*45.864mm |
Resolution | 360*360 |
Driving IC | ST77916 |
Interface | QSPI |
Driving Voltage | 2.8V |
| Viewing direction | ALL |
Backlight | LED*3,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.
Description | 1.8 inch TFT LCD display |
Outline size | 47.99*49.86*1.96mm |
Active area | 45.864*45.864mm |
Resolution | 360*360 |
Driving IC | ST77916 |
Interface | QSPI |
Driving Voltage | 2.8V |
| Viewing direction | ALL |
Backlight | LED*3,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
