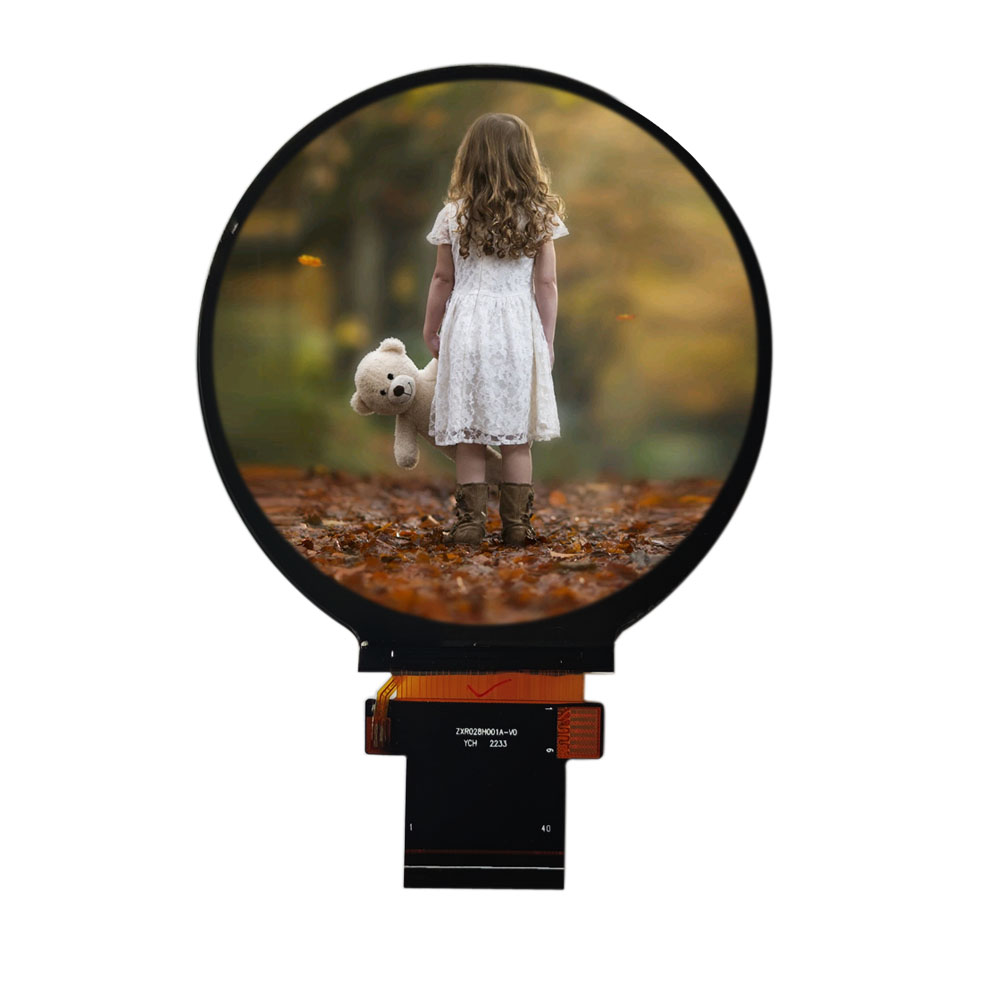

2.76" TFT display

Availability:
Quantity:
  • HZ276KPBS

  • 480*480

  • 73.03*76.48*2.26

  • 70.53*70.53

  • 70.13*70.13

  • ST7701S

  • HZ276KPBS01-A0.pdf

The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.


Name

2.76 inch TFT LCD display

Outline size

73.03*76.48*2.26mm

Active area

70.13*70.13mm

Resolution

480*480

Controller

ST7701S

Interface

3SPI-18RGB

Driving Voltage

2.8V

backlight

LED*4,white

Operating temperature

-20~70 ℃

Storage temperature

-30~80 ℃
