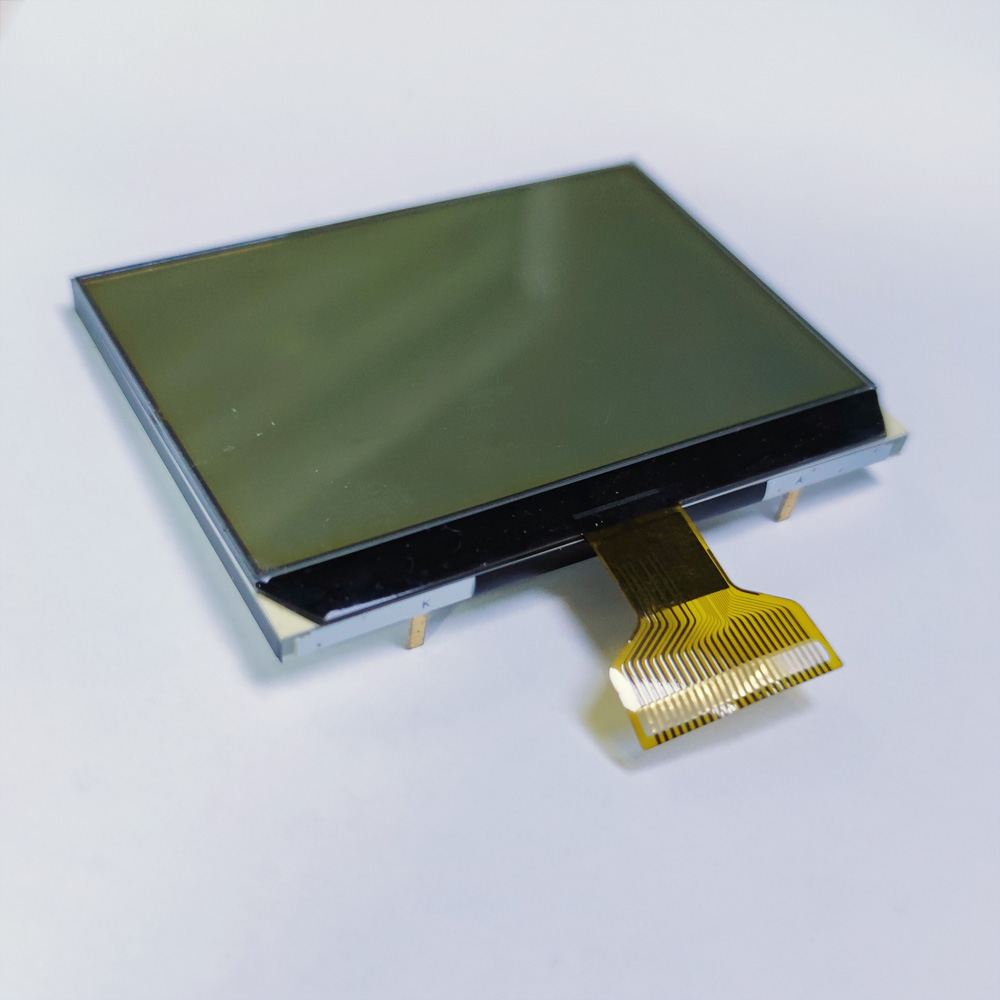

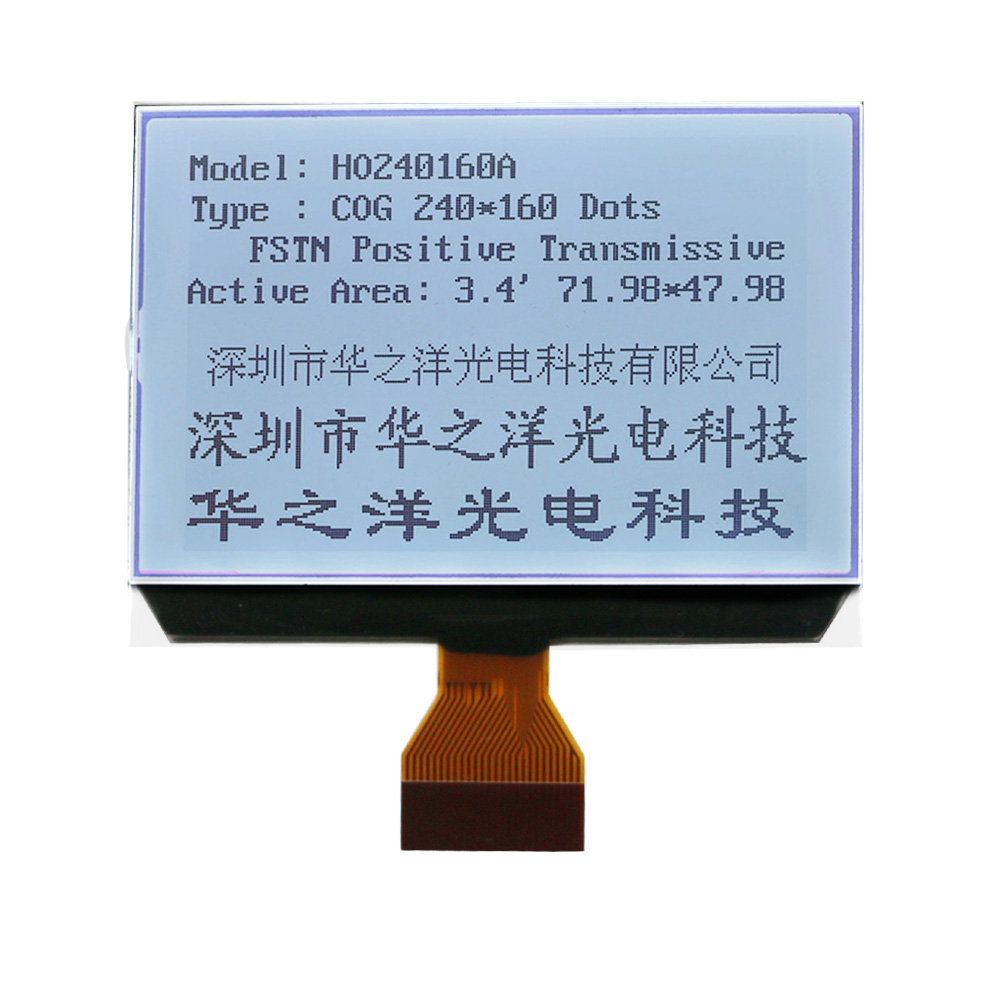

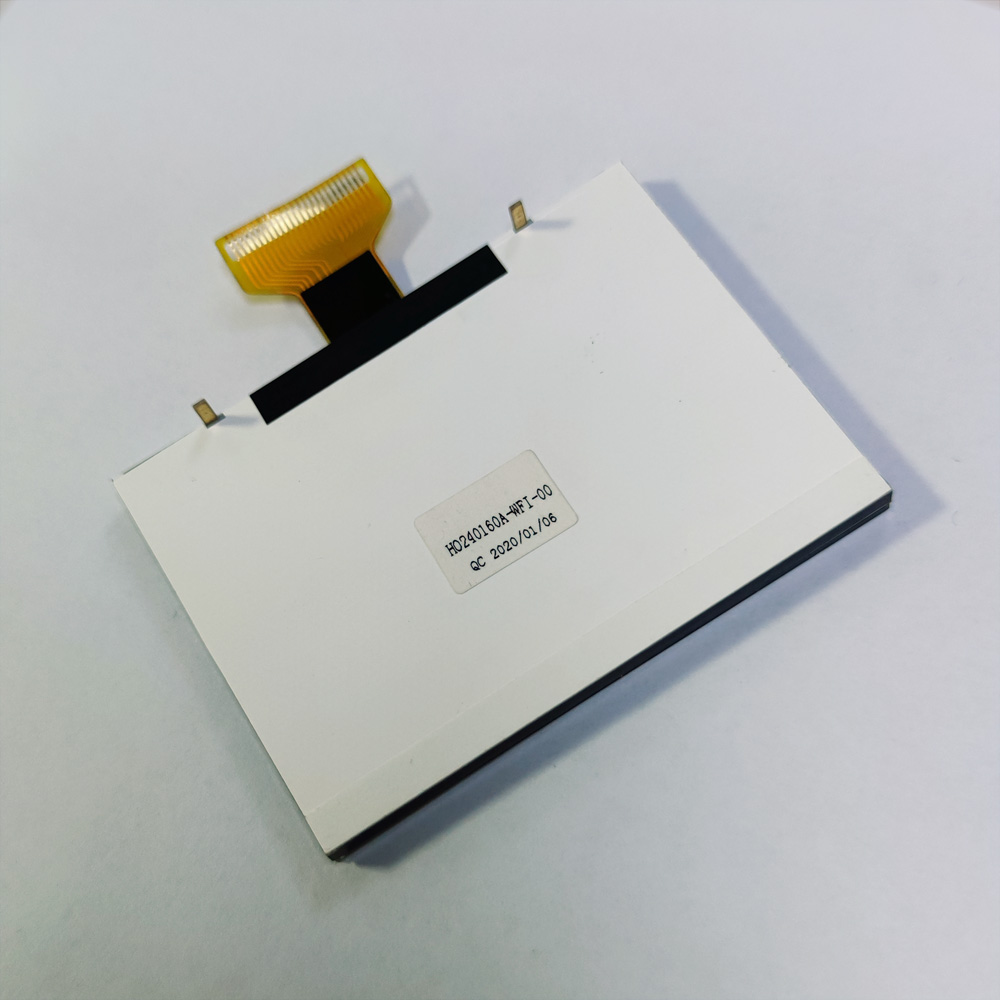

240*160 dots lcd module

Availability:
Quantity:
  • HO240160A

  • 240*160

  • 85.0*62.8*2.0

  • 77.58*51.6

  • 71.98*47.98

  • ST7586S

  • HO240160A-WFI-00.pdf

The dot matrix graphic lcd display is a structural parts,which is made up of lcd, connectors , peripheral circuits such as control and drive ,pcb and backlight,The dot matrix are arranged continuously, and there is no space between rows and columns in the arrangement. It can display continuous and complete graphics, as well as characters.


Dots matrix

240*160

Outline size

85.0*62.8*2.0mm

Viewing area

77.58*51.6mm

Active area

71.98*47.98mm

Driving voltage:

3.0V

Driving method:

1/160duty

Controller:

ST7586S

Viewing angle:

6H

Operating temperature:

-20~70 ℃

Storage temperature:

-30~80 ℃
