HZ0400HDPB
720*720
105.60*109.87*2.22
101.52*101.52
101.52*101.52
ST7703
|
| |
The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.

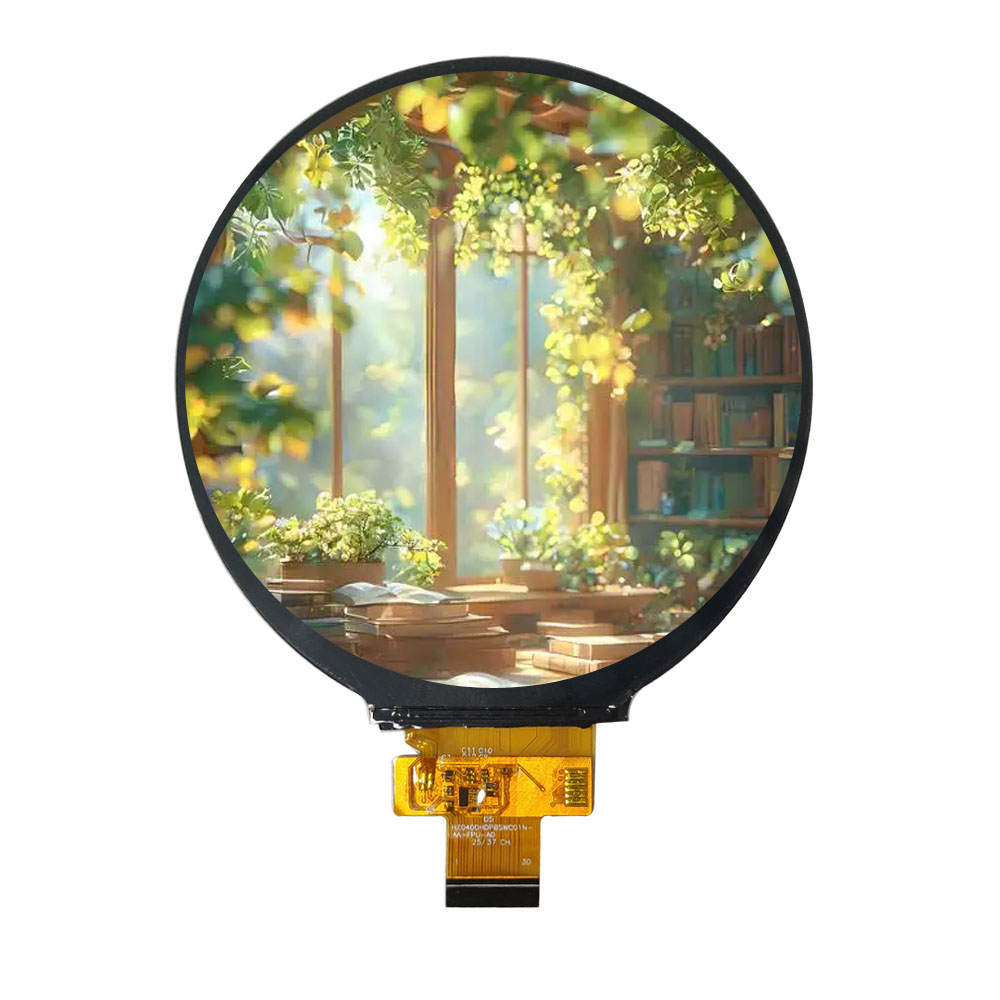

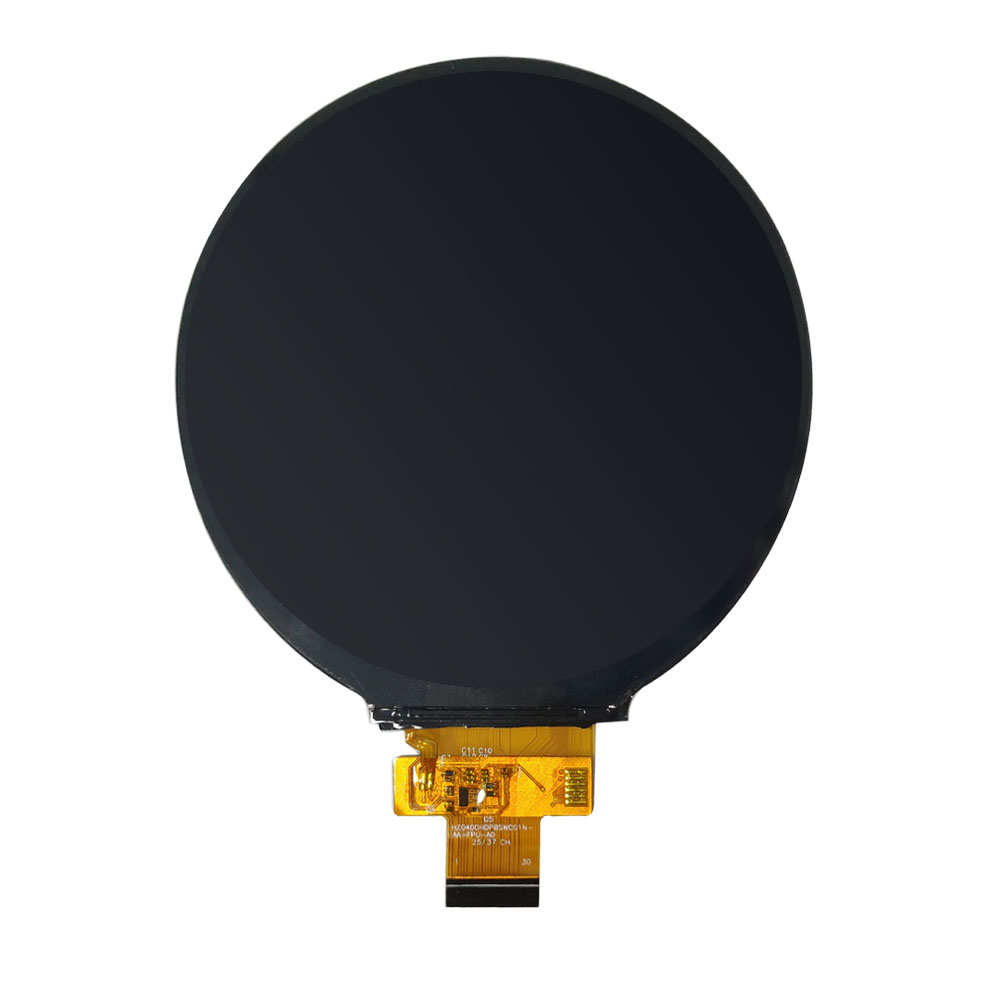

Description | 4.0 inch TFT LCD display |
Outline size | 105.60*109.87*2.22mm |
Active area | 101.52*101.52mm |
Resolution | 720*720 |
Driving IC | ST7703 |
Interface | MIPI |
Driving Voltage | 2.8V |
| Viewing direction | All |
Backlight | LED*8,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.
Description | 4.0 inch TFT LCD display |
Outline size | 105.60*109.87*2.22mm |
Active area | 101.52*101.52mm |
Resolution | 720*720 |
Driving IC | ST7703 |
Interface | MIPI |
Driving Voltage | 2.8V |
| Viewing direction | All |
Backlight | LED*8,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
