HZ0146HVPB
360*360
39.24*41.01*1.60
36.94*36.94
36.94*36.94
ST77916
The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.

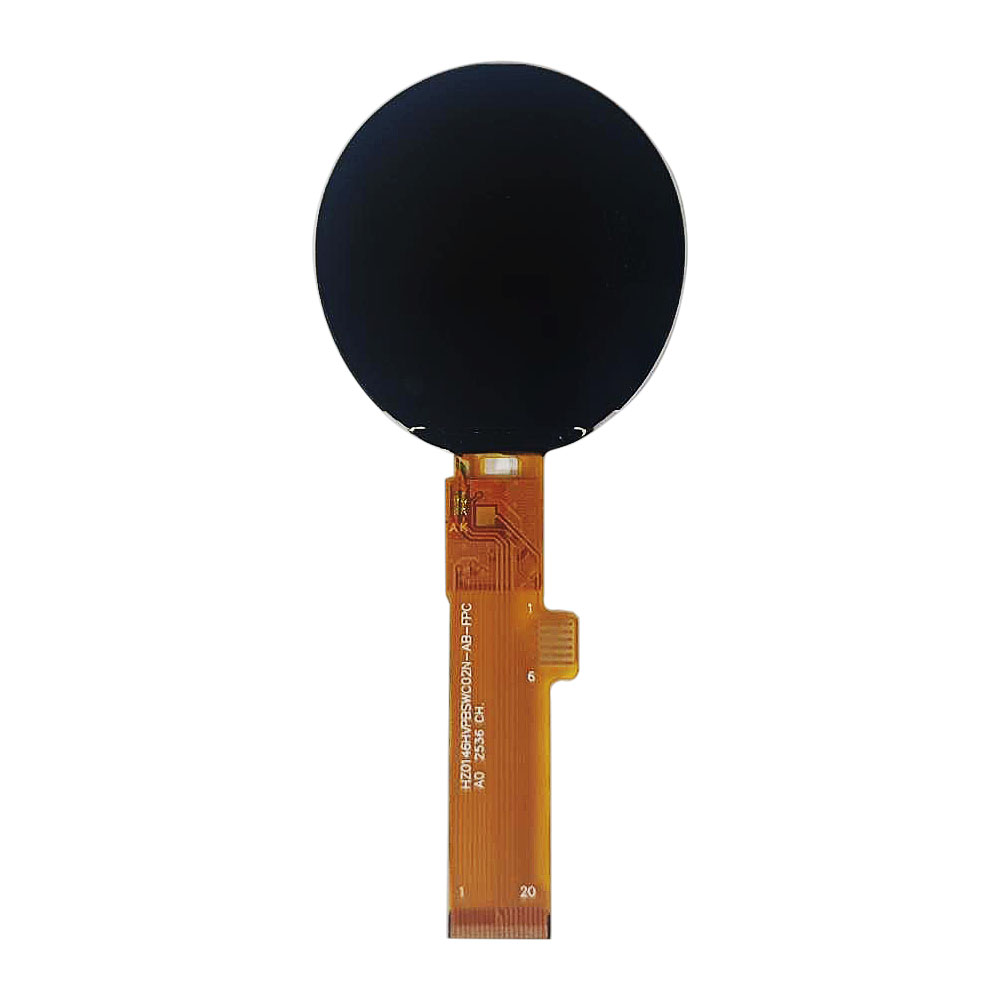

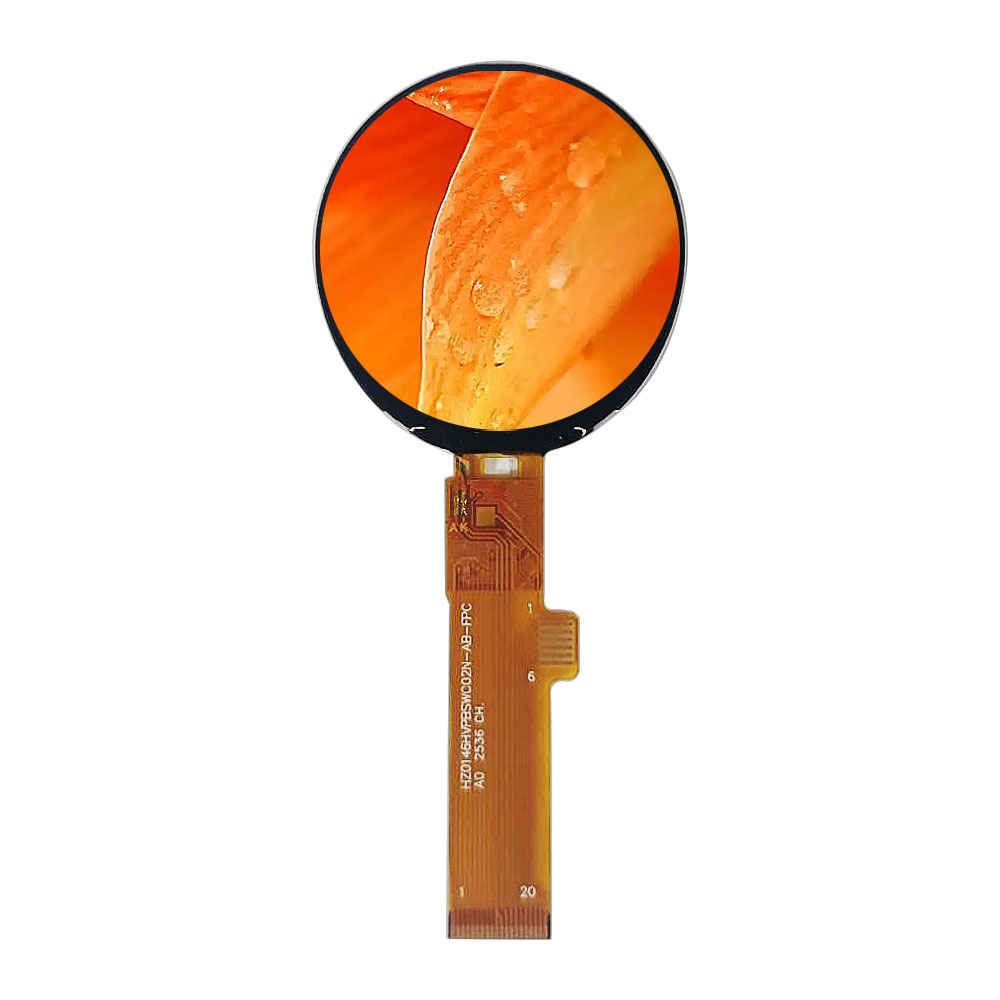

Description | 1.46 inch TFT LCD display |
Outline size | 39.24*41.01*1.60mm |
Active area | 36.94*36.94mm |
Resolution | 360*360 |
Driving IC | ST77916 |
Interface | QSPI |
Driving Voltage | 3.3V |
| Viewing direction | All |
Backlight | LED*3,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
