| Quantity: | |
|---|---|
HZ0160HVPB
400*400
42.14*44.34*1.95
39.84*39.84
39.84*39.84
ST77903
The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.

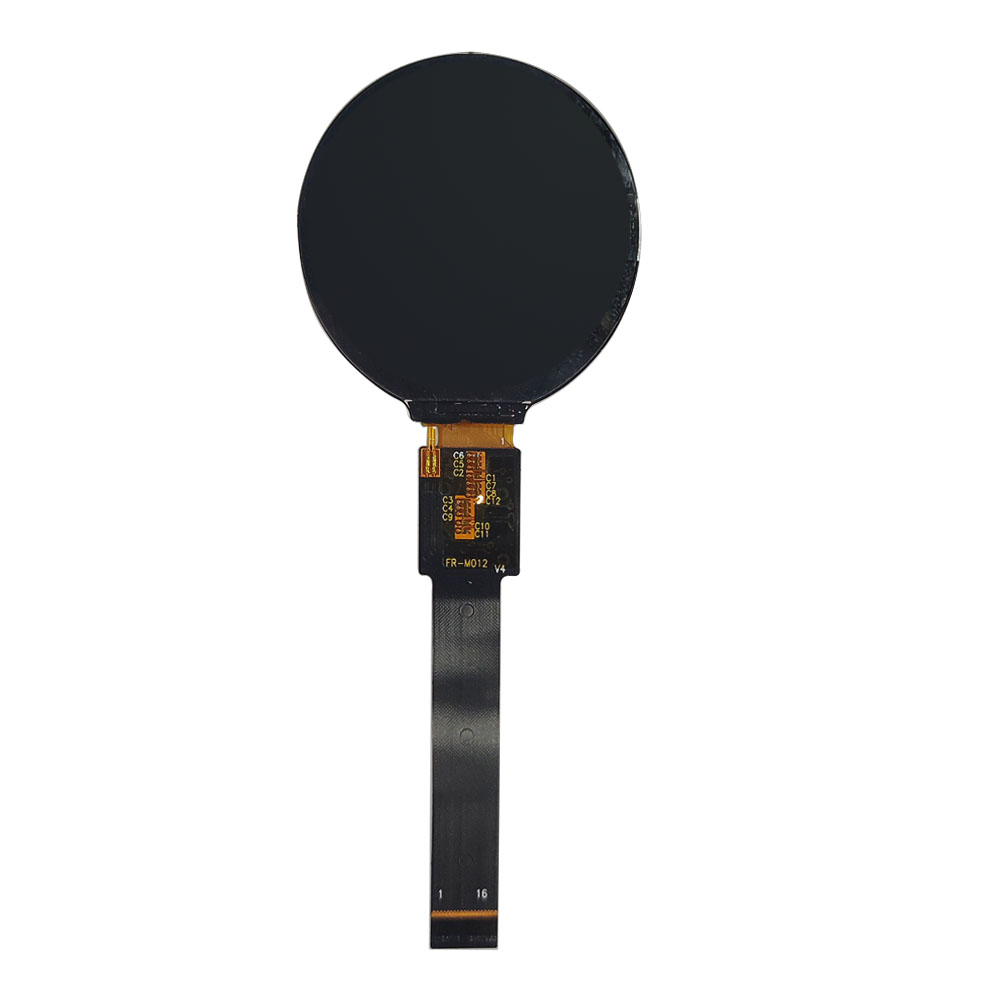

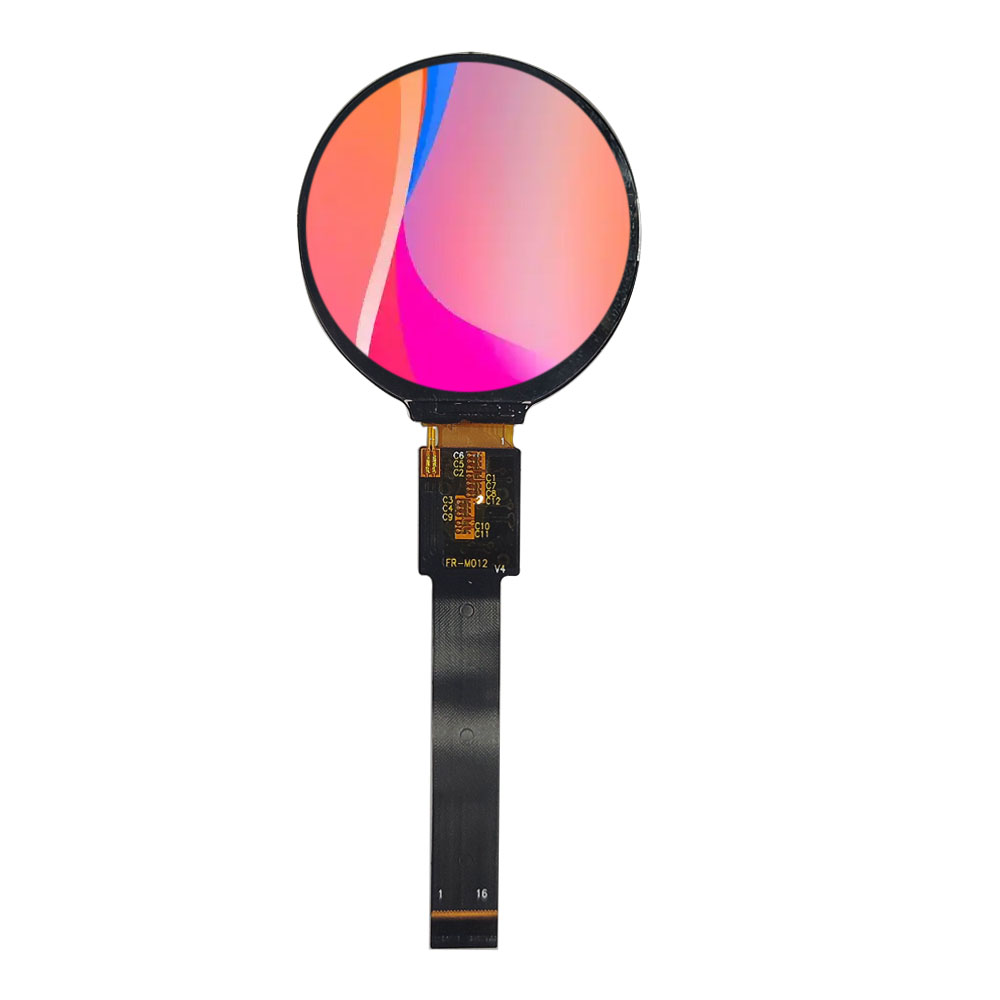

Description | 1.6 inch TFT LCD display |
Outline size | 42.14*44.34*1.95mm |
Active area | 39.84*39.84mm |
Resolution | 400*400 |
Driving IC | ST77903 |
Interface | QSPI |
Driving Voltage | 2.8V |
| Viewing direction | All |
Backlight | LED*3,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.
Description | 1.6 inch TFT LCD display |
Outline size | 42.14*44.34*1.95mm |
Active area | 39.84*39.84mm |
Resolution | 400*400 |
Driving IC | ST77903 |
Interface | QSPI |
Driving Voltage | 2.8V |
| Viewing direction | All |
Backlight | LED*3,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
