| Quantity: | |
|---|---|
HZ024E
128*160
42.72*60.26*2.25
36.72*48.96
36.72*48.96
ST7735
The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.

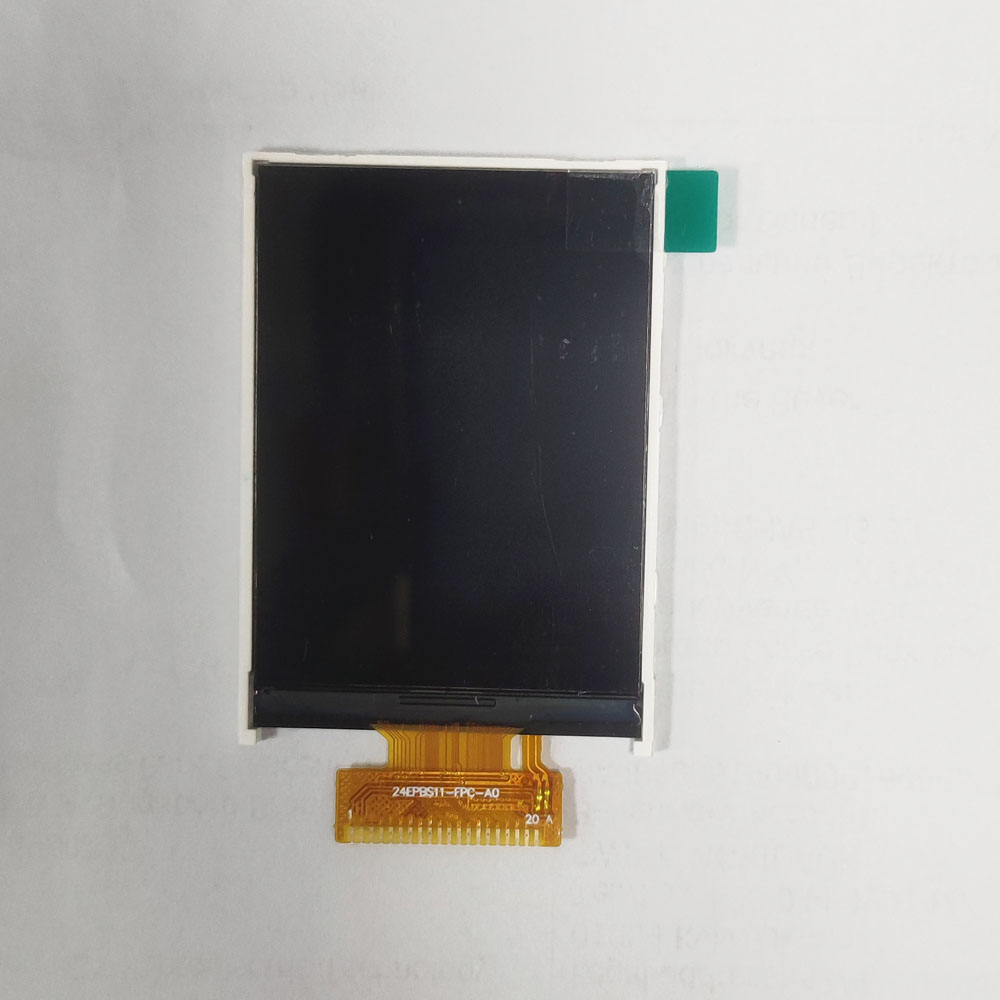

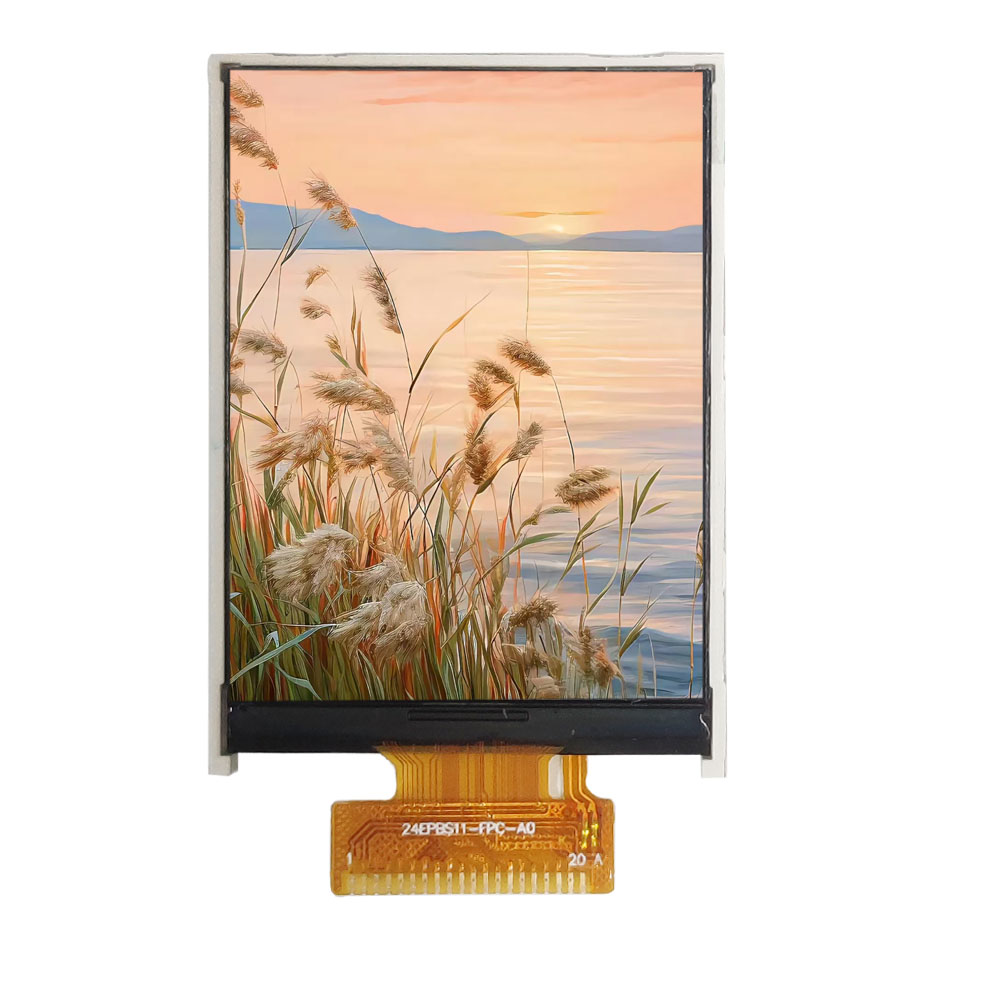

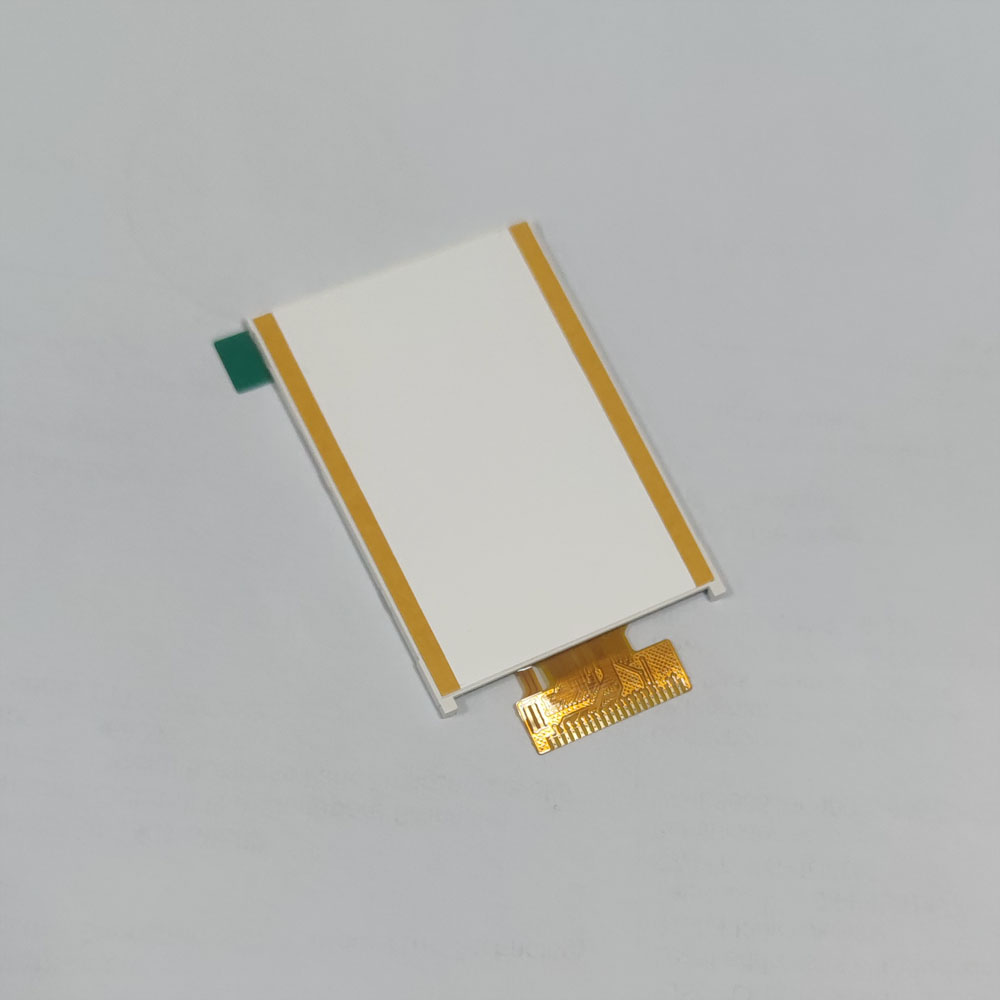

Description | 2.4 inch TFT LCD display |
Outline size | 42.72*60.26*2.25 |
Active area | 36.72*48.96 |
Resolution | 128*160 |
Driving IC | ST7735 |
Interface | MCU |
Driving Voltage | 2.8V |
| Viewing direction | All |
Backlight | LED*4,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.
Description | 2.4 inch TFT LCD display |
Outline size | 42.72*60.26*2.25 |
Active area | 36.72*48.96 |
Resolution | 128*160 |
Driving IC | ST7735 |
Interface | MCU |
Driving Voltage | 2.8V |
| Viewing direction | All |
Backlight | LED*4,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
