HZ0071QQPB
60*160
8.62*15.47*1.95
6.41*10.68
6.41*10.68
GC9D01
The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.

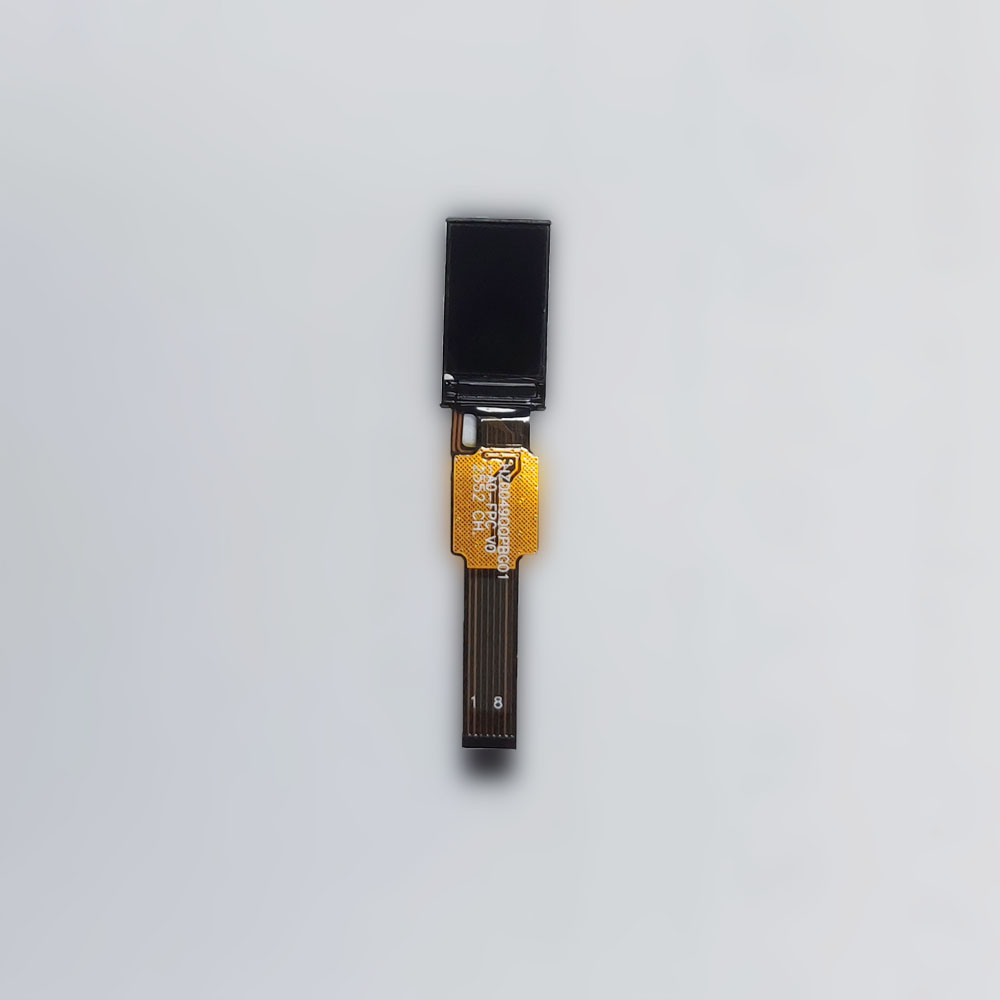

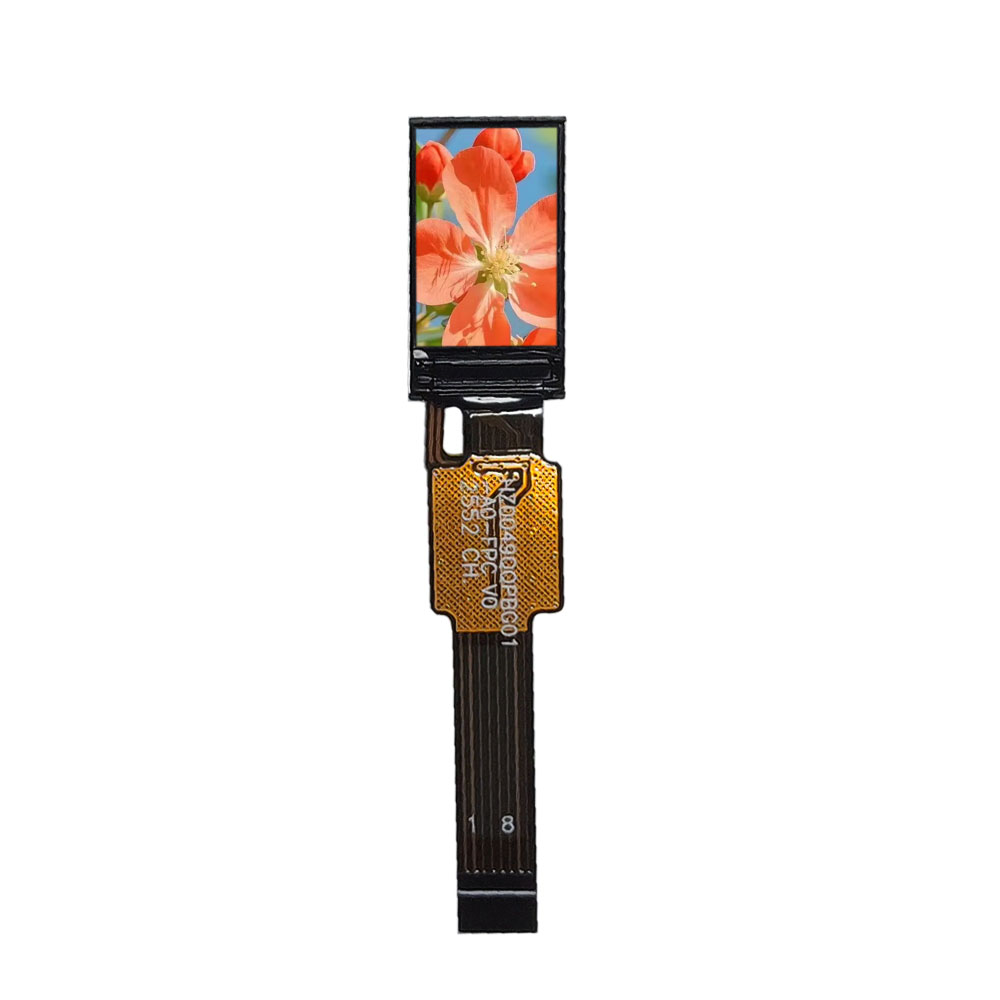

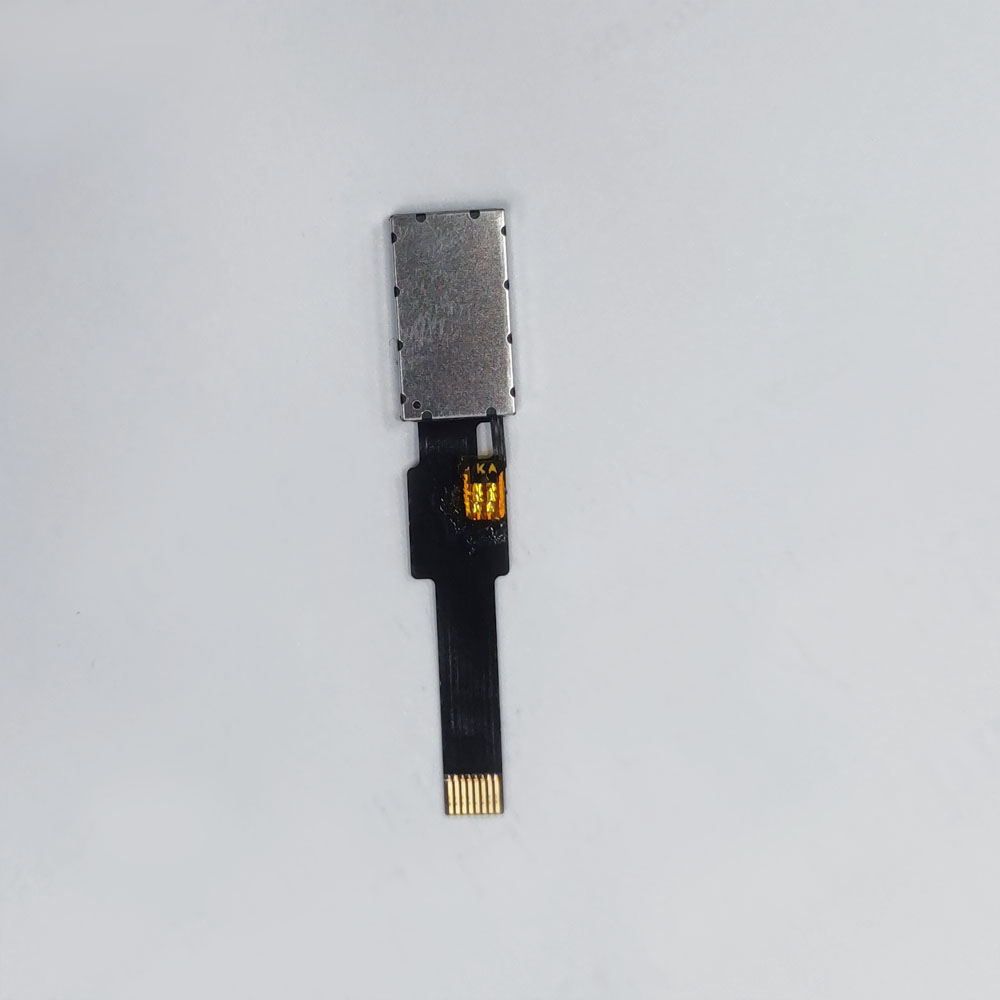

Description | 0.72 inch TFT LCD display |
Outline size | 8.62*15.47*1.95 |
Active area | 6.41*10.68mm |
Resolution | 60*160 |
Driving IC | GC9D01 |
Interface | SPI |
Driving Voltage | 2.8V |
| Viewing direction | All |
Backlight | LED*1,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.
Description | 0.72 inch TFT LCD display |
Outline size | 8.62*15.47*1.95 |
Active area | 6.41*10.68mm |
Resolution | 60*160 |
Driving IC | GC9D01 |
Interface | SPI |
Driving Voltage | 2.8V |
| Viewing direction | All |
Backlight | LED*1,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
